The Solid-State Battery Module
The Whitemark Fia module was developed specifically for pouch cells and precisely tailored to their characteristics. By designing it around cells such as HYTZER’s new high-performance HP310 pouch cell, a battery system is created that fully leverages the potential of the cell technology while meeting the highest standards of performance, efficiency, and reliability.
The combination of high-performance pouch cells and our intelligent module design enables high energy density, excellent performance, and a long service life. At the same time, an optimized thermal concept and precise electrical and mechanical integration ensure safe, stable operation - even under demanding conditions.
The result is a powerful, scalable, and future-proof battery solution suitable for a wide range of applications, offering maximum performance alongside a high level of operational safety.
Your Benefits at a Glance
Ultra-Fast Charging Capability
Minimal charging times, maximum operational readiness: The Fia module is designed for high charging power and enables ultra-fast charging—ideal for demanding applications with short downtime.
Longer Service Life & Lower Operating Costs
Thanks to innovative temperature management, cell aging is significantly reduced. The result: a significantly extended service life, lower maintenance costs, and a reduced carbon footprint—for a sustainable investment.
Enhanced Safety
The cells are completely surrounded by a non-hazardous coolant that reliably prevents potential thermal chain reactions. This ensures maximum operational safety—even under extreme conditions.
One Concept, Versatile Applications
Sustainability & Recyclability
The modular “click-and-build” design allows for quick disassembly, thereby simplifying the recycling of the cells and other components. The patented profile extrusion enables the use of recycled aluminum. The cell holders can also be made from recycled and virgin plastics. The coolant is also reusable—for maximum resource conservation.
Technology with a Sense of Responsibility
The Fia module combines performance, safety, and sustainability in a future-proof system—designed for users who are already thinking about tomorrow.
Contact us for technical specifications, integration, or custom solutions.

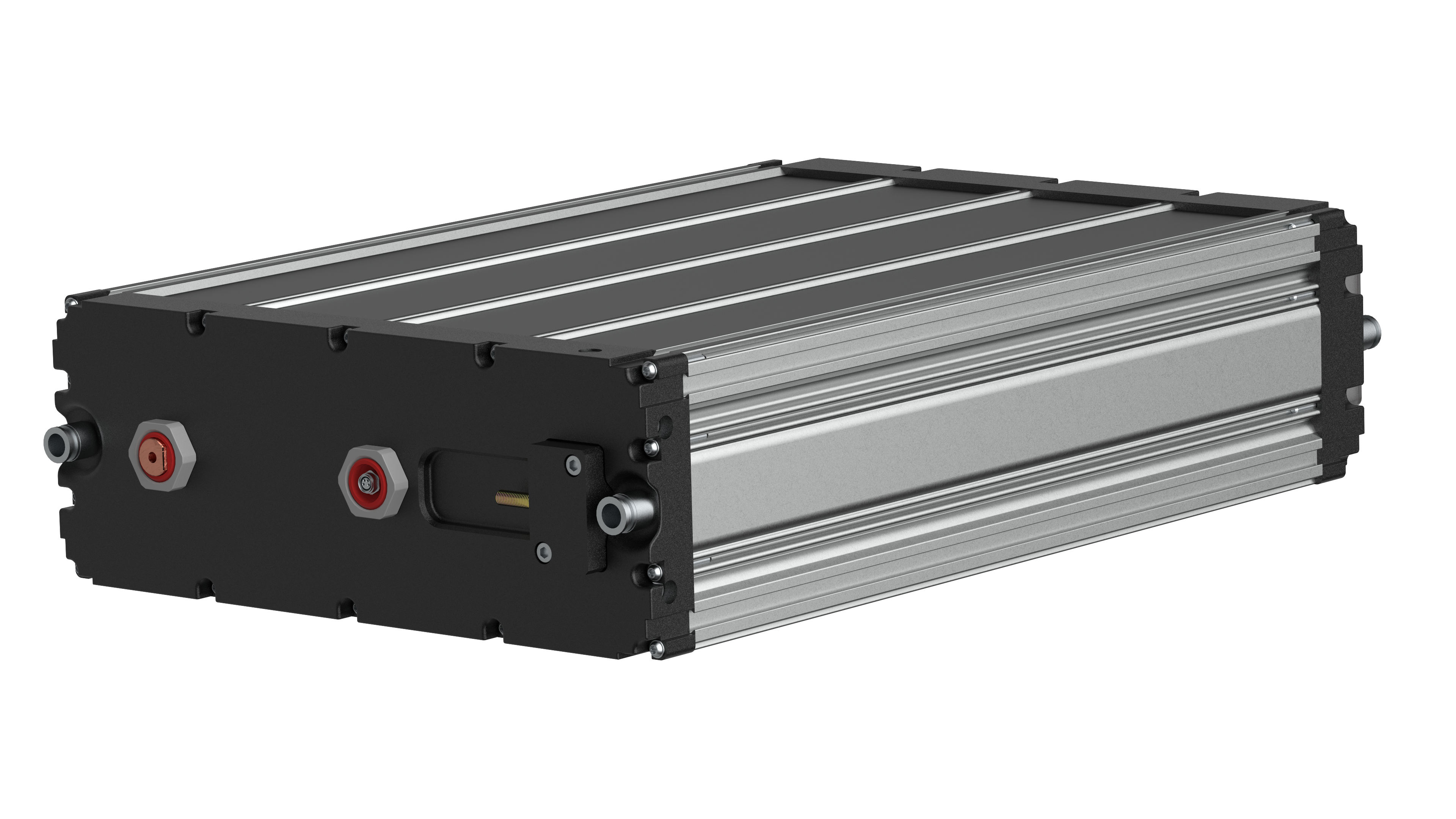

Available Fia-Module
The module has a modular design—for maximum adaptability depending on the application and cell. Current version:
| Technical Specification | |
|---|---|
| Rated Voltage | 14S3P |
| Rated Capacity | 186 Ah |
| Nominal Energy Content | 9,45 kWh |
| Resistance DCIR | ca. 5mΩ |
| Cell Base | see below |
| Mechanical Properties | |
|---|---|
| Dimensions | 610x390x145mm |
| Weight | 56.4kg (+/- 2kg) |
| Connections | TBD |
| Case Material | Aluminium |

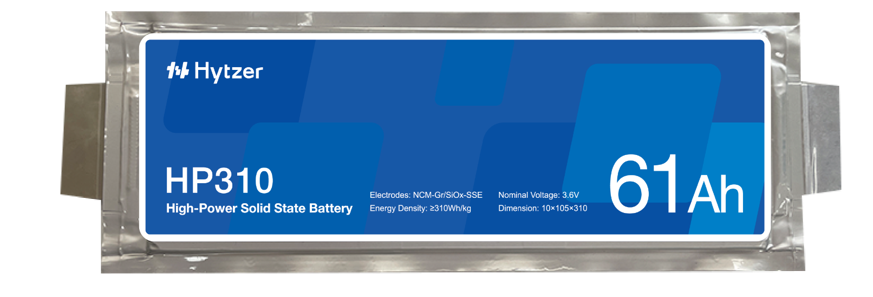

About the Cell
| HP310 - lots of energy & safety | |
|---|---|
| Electrodes | NCM-Gr/SiOx-SSE |
| Dimensions | 10x105x310mm |
| Cell Capacity | 61 Ah |
| Voltage | 3.6V |
| Weight | 0,73kg (+/0,01kg) |
| Gravimetric Energy Density | ≥320 Wh/kg |
| Volumetric Energy Density | ≥780 Wh/L |
| Max. Charge Rate | 3C |
| Max. Discharge Rate | 5C |
| Cycles | 1000, ≥80% (standard) |
| Working Temperature | -30～70°C |
More information: https://www.hytzer.com/news/1176.html
Interested?
We'd be happy to present all the details of our Fia solid-state battery solution.
